Large

Heat Presses


Sefa has been for more than 40 years, a French designer and manufacturer of fully programmable automation large format hot transfer presses for the textile industry and the sublimation market on solid materials to receive ChromaLuxe approved status.


Information

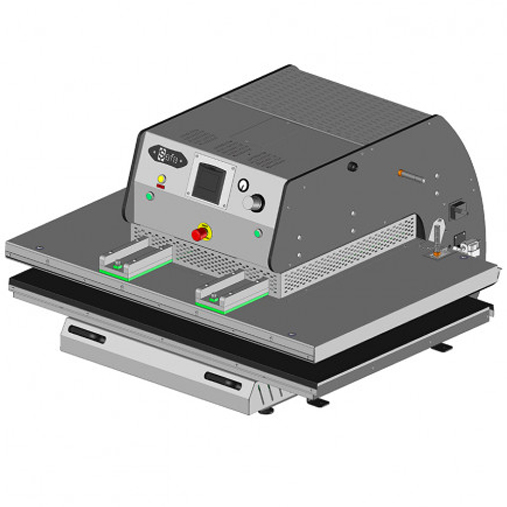

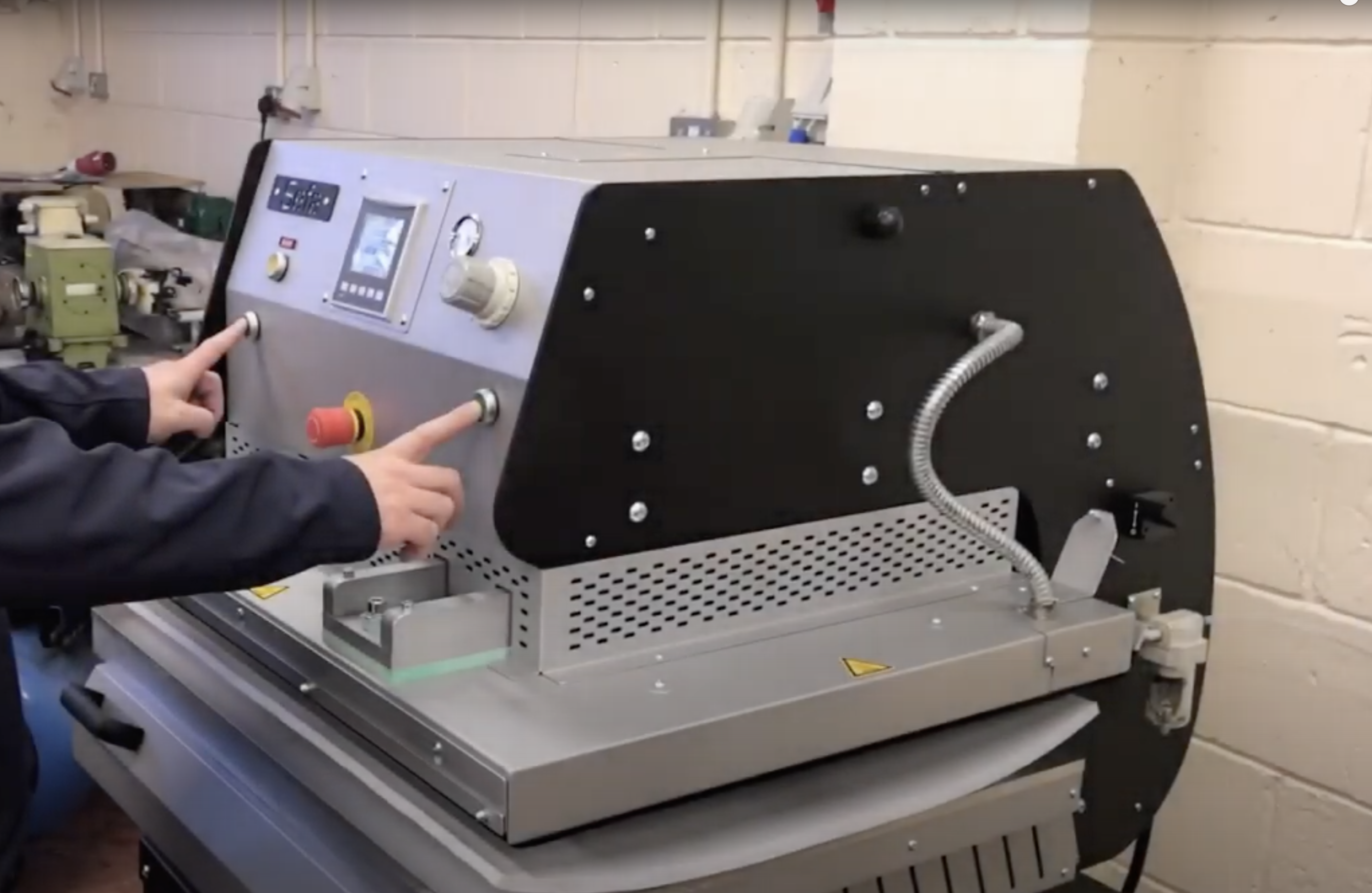

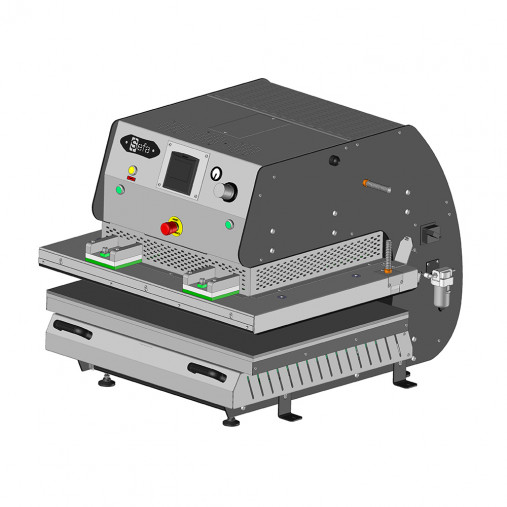

The pneumatic SLIDE 865 was created for high-quality rigid substrates for sublimation printing on Sublimation Rigid Substrate, Textile Sublimation Useful size 80x60 cm up to  The Power supply is 240 V Single-phase (Neutral + Ground)  and 400 V 3-phases (Neutral + Ground)

Operation         Slide - Tray with drawer

Platen size        85x65 cm / 33x26 "

Max thickness   45 mm

Weight 261 Kg / 575 lbs

Pressure           453 gr/cm²

°C / °F Max       220 °C / 429 °F

Power  6000 W

Power supply    240 V Single-phase + Neutral + Ground, 400 V 3-phases + Neutral + Ground

Amperage         28 A, 9 A

Dimension        794x1756x893 mm / 31x69x35 "
